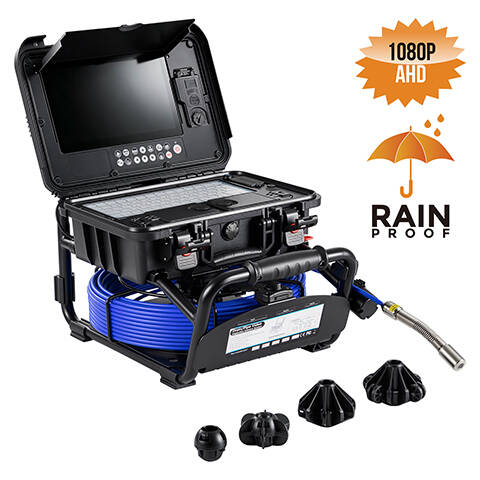

This is a professional video inspection camera designed for inspection of sewer, pipe, air ducts, undergound cable pipes, etc. Equipped with a Φ23mm 1/3' CMOS camera head, 20~40m fiberglass rod cable and 10.1 ' LCD monitor with SD card recording, it's a great choice for pipe DN 50mm~140mm.

Features:

1/3 inch CMOS 1080P AHD camera head, 130° wide vision angle
Stainless steel camera head, IP68 waterproof level
Sapphire glass lens cover, 15 high light white LEDs
Diameter of camera: 23 mm

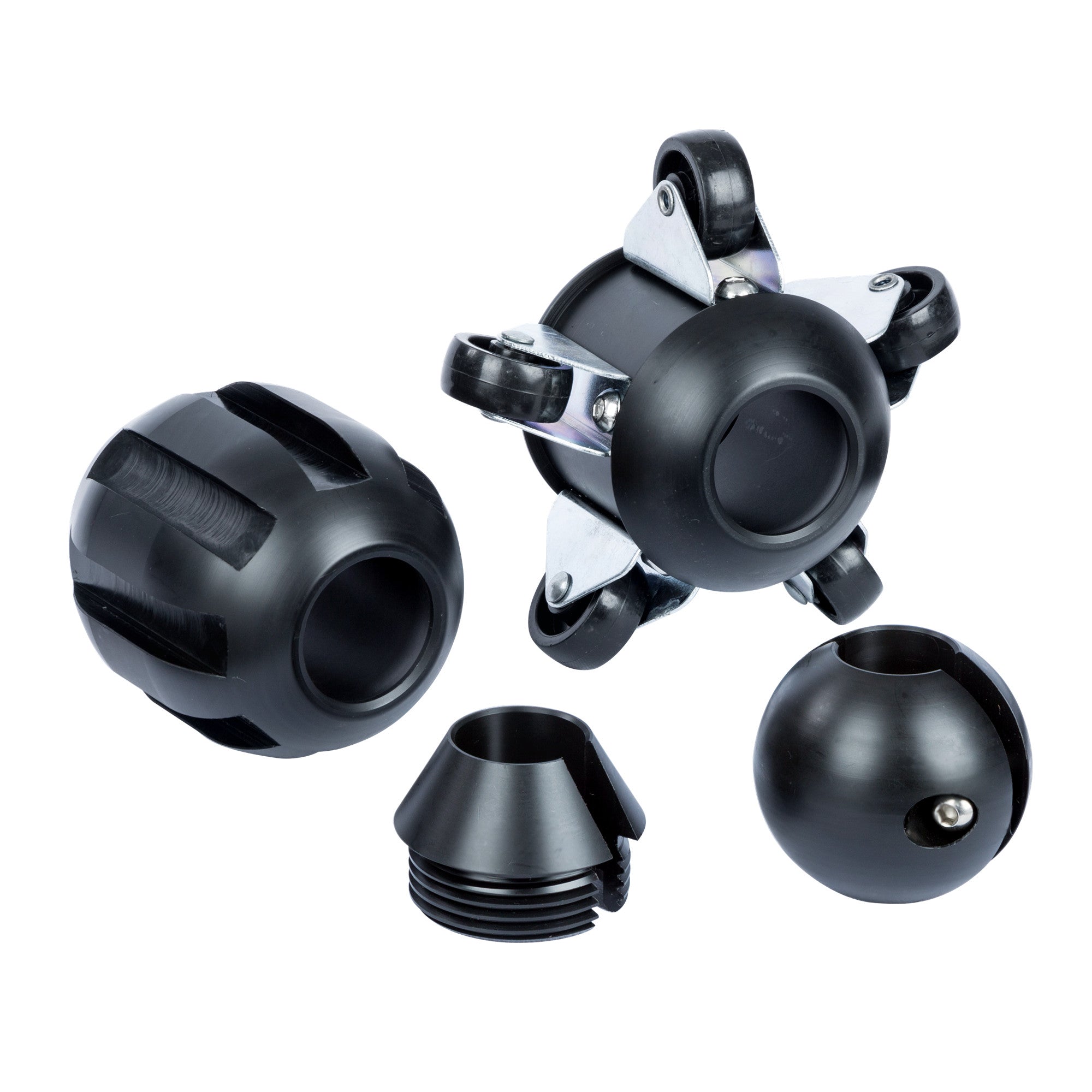

Four plastic guides for camera head, Φ46mm, Φ80mm, Φ86mm and Φ100mm

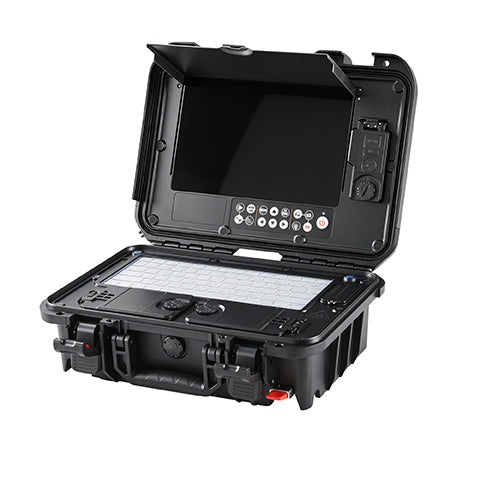

10.1” LCD color monitor
SD Card slot to store still pictures or videos
One push record button
LED brightness control button
With microphone for local audio recording
Rechargeable battery lasts up to 6 hours
On-Screen date and time, distance counter
20,30,40m fiberglass Φ6.8mm push rod
Ability to go through 90°bends in Φ52mm pipes
With smart braking system
With Keyboard for text input (English)

Additional features:

We stock the highest specification  version of the TVBtech 3599FB drain camera.

Note the extra features.

38mm self-levelling head with built in 512k Sonde.

Optional 33kHz screw in sonde. 40m,

Blue 6.8mm push rod.

64gb SD card.

 Skids to suit 4”, 6”and 9” pipes.

Can be used up to 12” pipes.

Full repair service available.

Specifications:

Camera head:

Sensor: 1/3 inch CMOS
Resolution: AHD 1920x1080
Head Dimension: 23mm(dia.)x51mm(length)
Camera Material: 304# Stainless Steel
View Angle:130° wide angle
Lens Cover: Sapphire glass
Leds: 15 pcs High White LEDS
Water Proof: IP68-20m under water
Focus Distance: 15cm(Approx)

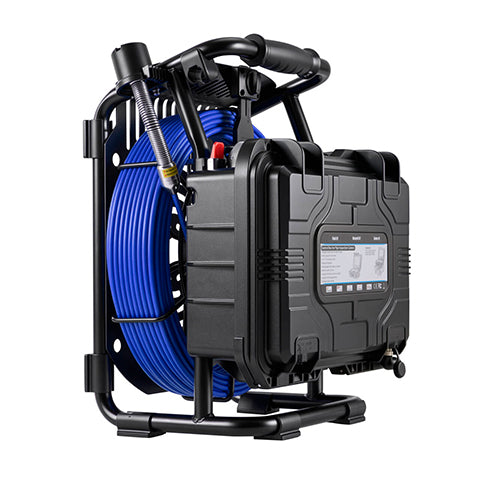

Cable reel:
Material: Fiberglass rod cable
Wheel: Stainless steel wheel
Cable Length: 20, 30 or 40m optional
Connector: Gold touch-point connector
Rotation: Slip ring
Wheel diameter: 33cm
Cable diameter: 6.8mm (0.2”)

LCD Display and DVR:
LCD Resolution: 1024x600 pixels
Video Resolution: AHD 1080P
Video Compress: MPEG-4
Recording: Video and audio recording
Picture: Picture shotfunction
LCD Size: 10.1 inch
Menu Language: 14 Languages
Panel Control: Any functions through buttons
External Memory: SD Card(Max.64GB)


Brochure: View Brochure
