Robotic layout solution. Quick, accurate, and easy construction site layouts.

Looking for a fast and precise solution for construction site layouts? Try HP's robotic layout system! This advanced technology streamlines the process, making it easier than ever to create accurate and effective layouts for your project. Transform your construction process today with HP's innovative layout robot.

The innovative HP SitePrint solution is now fully available and ready to radically improve productivity.

By digitizing what has long been a manual and time-consuming task, HP SitePrint makes it fast and easy for construction professionals to bring an idea to life on-site, while providing accuracy and reducing costs.

Improve on-site productivity

What if you could save on layout costs at your next job site? Help reduce layout and laborcosts, with autonomous operation and printed text on the field to save time. HP SitePrint brings productivity on site, from start to finish.

Get accurate layouts

Whether you’re building a parking structure, mall, or airport, HP SitePrint’s precision is in a class of its own. It’s consistently accurate on implementation and can handle complex layouts to help you get every job done exactly right.

Easy to use

This robust, all-in-one construction layout management solution can easily handle end-to-end project processes and has innovative versatile printing capabilities. The best part? It’s portable, to take it effortlessly from job site to job site.

GENERAL

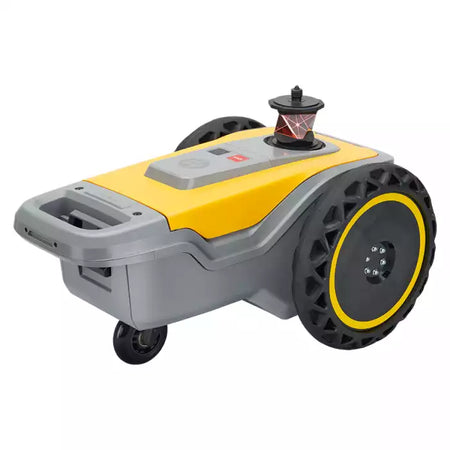

Description	HP SitePrint Robot
Product	3F8P0A
Power management	Exchangeable Lithium-Ion battery. Two batteries last a whole working shift (8h)
Application	Layout for building construction: interior walls, Mechanical, Electrical, Plumbing, Fire Protection, HVAC and Formwork.
Materials	Porous surfaces: polished and rough concrete, tarmac and wood. Non-porous surfaces: terrazzo, vinyl and epoxi
Obstacle avoidance	4 Safety sensors to avoid falloffs 3 LiDAR sensors to avoid collisions

PRINTING
Ink cartridge	1 cartridge (400ml -13.5oz Ink System)
Printing speed	900m/h (2,953 ft/h)
Navigation speed	1,440m/h (4,724 ft/h)
Minimum printable width	0.07in (2mm)
Maximum printable width	2in (51mm)
Printable elements	Lines, Text, dashed-lines, curved lines, circumferences.
Printhead to floor distance	3/4 in (19 mm)
Accuracy tolerance	1/8 in (3mm)2

INK
7J3Q9A	HP SitePrint 100 Blue SB Semi-Permanent
76Y83A	HP SitePrint 101 Red SB Semi-Permanent
76Y82A	HP SitePrint 102 Black SB Permanent
7J3R0A	HP SitePrint 103 Black WB Permanent
7J3R1A	HP SitePrint 104 Cyan WB Permanent
7J3R2A	HP SitePrint 105 Magenta WB Permanent
76Y80A	HP SitePrint 107 Cyan WB Semi-Permanent
76Y81A	HP SitePrint 108 Magenta WB Semi-Permanent
76Y84A	HP SitePrint 109 Cleaning Fluid

ENVIRONMENTAL
Protection	IP4X/NEMA1
Maximum slop	2.5º (4.4%)
Recomended operating temperature range	From 15F to 105F (From -10ºC to 40ºC)3
Operating humidity	20%-80%
Operating altitude	6560 ft (2,000 m)

DIMENSIONS
Dimensions	Printer only: 50.5 x 31.7 x 26.1 cm –19.8 x 12.4 x 10.2 in = With transportation case: 62.5 x 49.0 x 36.5 cm – 24.6 x 19.2 x 14.3 in
Weight	Printer only: 8.9kg – 19.7 lb With transportation case:17.7kg – 39.0lb

CONNECTIVITY
RTS Compatibility	Leica iCon80 / Leica TS16
Connectivity	Bluetooth, 4G, WiFi
