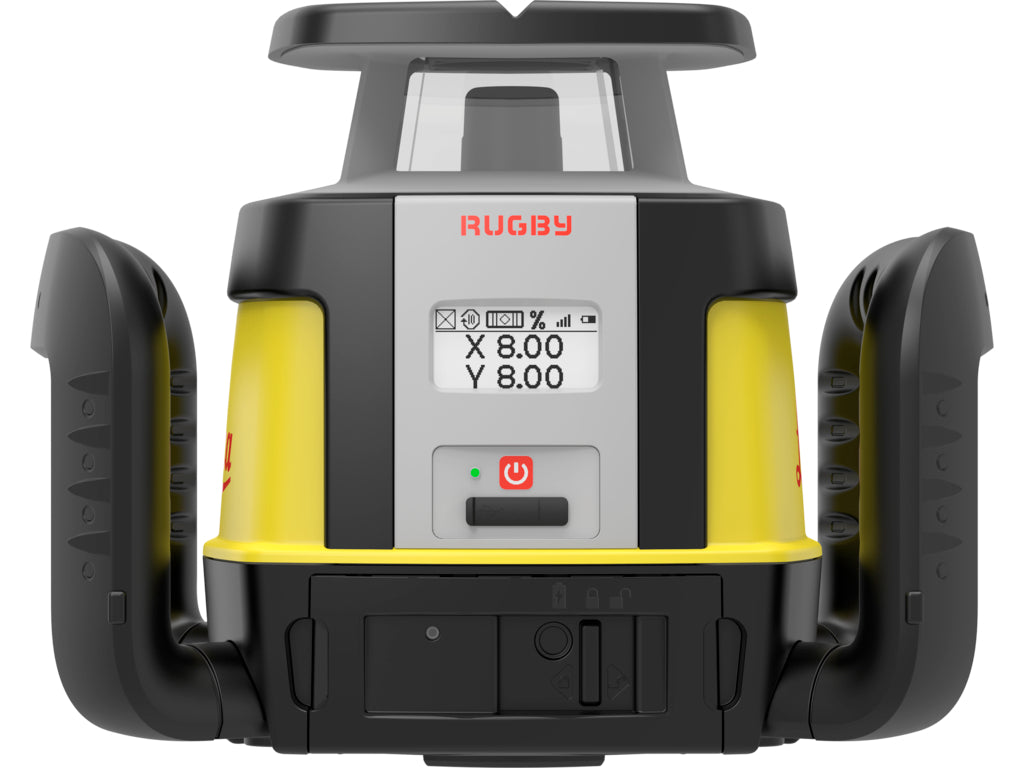

Leica Rugby CLH

Upgradable Leica Laser Level

  • Simplicity At Its Best

    Leica Rugby CLH simplicity allows for effortless use of the capabilities of the laser system. It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The upgrade options allow for maximised performance in all levelling applications.

    Base unit - Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications.

    Upgrade options

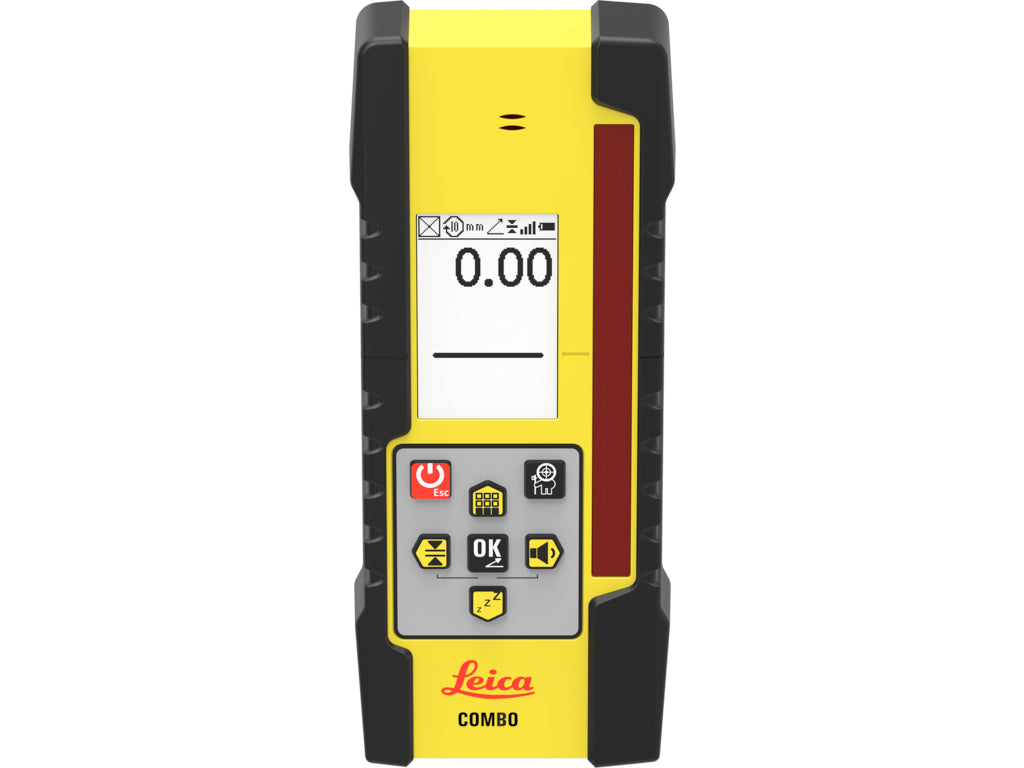

    *Receiver-Leica Combo receiver required for below options


    CLX 200 – with manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task
    CLX 300 – adding +-8% semi-automatic grade functionality in single axis with a dial-in option, the upgrade delivers a solid performance in single slope applications
    CLX 400 – adding +-8% semi-automatic grade functionality in second axis with a dial-in option, the upgrade delivers a solid performance in dual slope applications

    What does this add up to? Reduced work downtime, thus translate into higher productivity, resulting in reliability and accuracy at an extremely reasonable price. Test one for yourself at LES today.
  • FUNCTIONALITY
    • Self-levelling horizontal, vertical, 90° and manual slope in dual axis
    SMART TARGETING
    • Yes
    SMART LOCK
    • Yes

    OPERATING RANGE
    • With Rod Eye 140/160/180 | 1300 m
    SELF LEVELLING ACCURACY
    • ± 1.5 mm at 30 m
    ROTATION SPEED
    • 0, 2, 5, 10 rps
    SCANNING MODES
    • 10°, 45°, 90°

    LASER DIODE TYPE / CLASS
    • 635 nm (visible)
    BATTERY LIFE
    • Lithium-Ion | 50hrs

    Alkaline | 60hrs
    ENVIRONMENTAL SPECIFICATIONS
    • Working temperature range | -20 °C to +50 °C
    • IP 68 / MIL Standard 810G
