Leica Lino L6G Multi Line Laser

Leica Lino L6G

3x360° Green Multi Line Laser

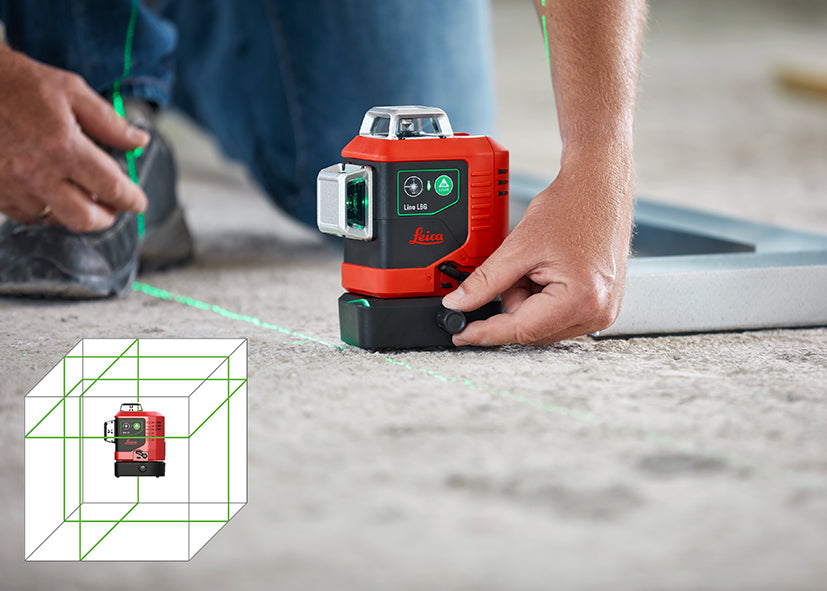

  • Horizontal and two vertical 360° green laser lines and High visibility due to red Ultra-power laser diodes
  • Self-levelling over wide range
  • Fixed plumb point due to integrated base

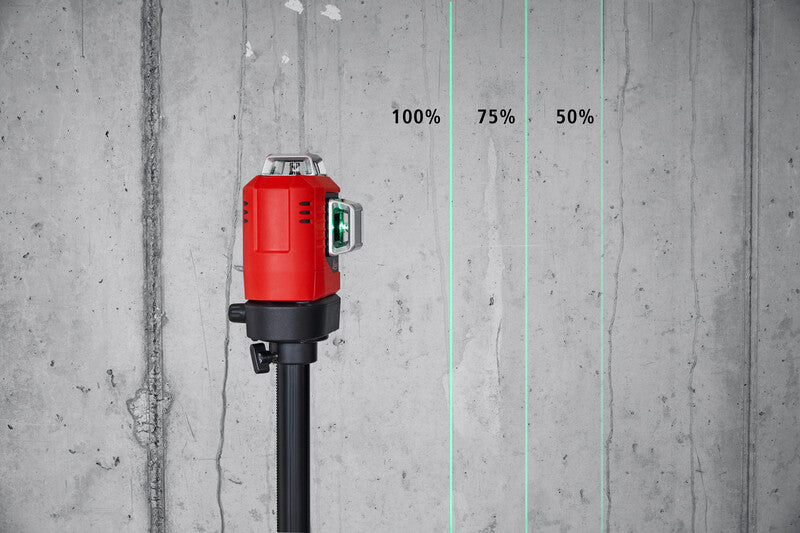

  • Adjustable strength of laser lines
  • Operating range of up to35 metres
  • Li-Ion power for up to 11 h operation
  • Uninterrupted working with Triple-Power concept

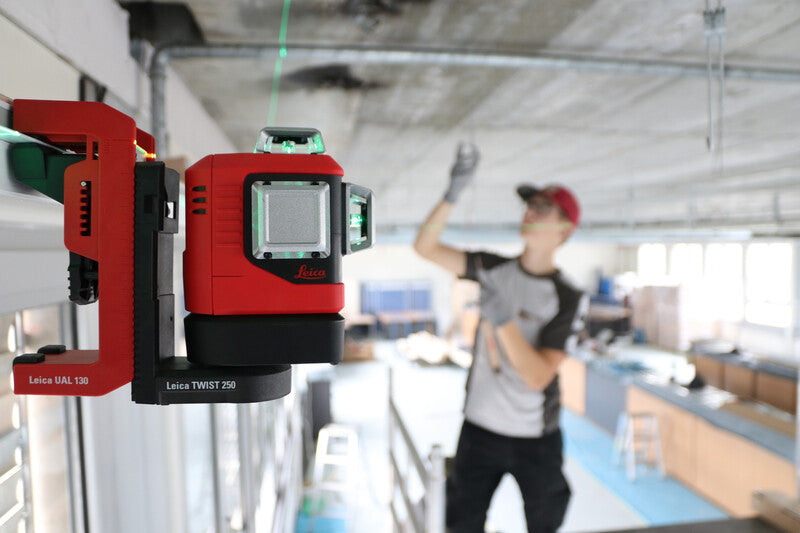

  • Smart magnetic adapters for easy positioning


Leica Lino L6Gs

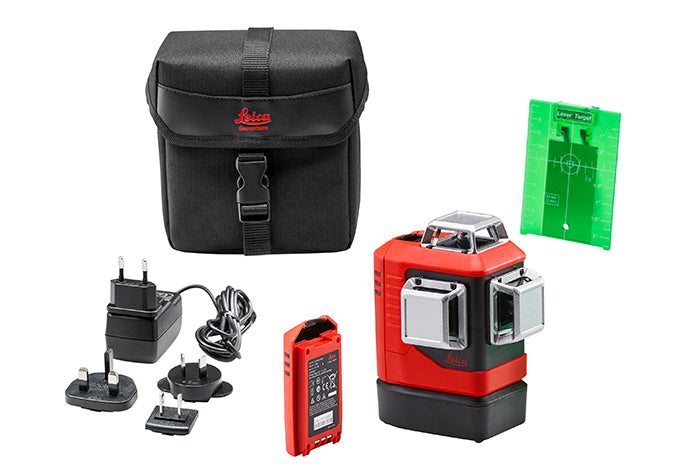

Leica Lino L6G, battery tray for Alkaline, 3xAA Alkaline batteries, target plate, quick start guide, Calibration Certificate Blue, pouch
Leica Lino L6G

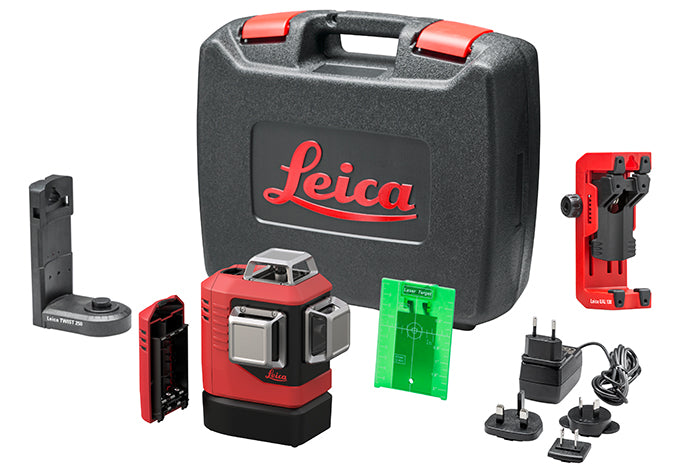

Leica Lino L6G, Twist 250 magnetic adapter, UAL 130 Wall mount adapter, Li-Ion battery pack and charger, battery tray for Alkaline, target plate, quick start guide, Calibration Certificate Blue, hard case



  • Range | up to 50 ft depending on lighting conditions
    Range with laser receiver | > 100 ft
    Levelling accuracy @ 5 m | ± 1/16"
    Self-levelling range | 4° ± 0.5°
    Accuracy of plumb point @ 16 ft | ± 1/16"
    Accuracy of horizontal line @ 16 ft | ± 1/16"
    Vertical accuracy @ 10 ft line length | ± 1/32"
    • Beam direction | vertical, horizontal, up, down, right, left
    • Laser type | 635 nm, laser class II
    Protection class splash water/ dust proof | IP54 splash water/ dust proof

  •
