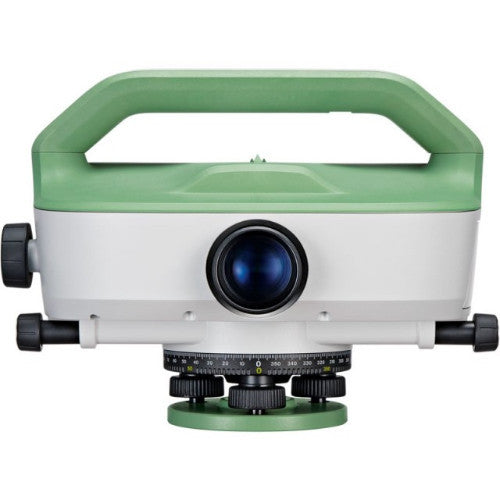

Leica LS15 Digital Level

Leica LS15 Digital Level with Autofocus

  • Reliable accuracy with ease

    Automated functions and industry-leading 0.2 mm accuracy to standard Invar staffs deliver unmatched reliability. Precision begins by using the electronic level bubble to set up instruments. After one button press, automatic tilt checks are made prior to each measurement. Integrated autofocus not only finds your target faster, it increases measurement accuracy by maximising contrast of the staff.

    Users profit from Leica Geosystems’ experience as inventors and industry leaders of digital levels. Honing the digital level into an art form, these solutions collect results faster with the highest accuracy available.

    Standard Kit contains; 2 GEB331, Battery int Li-Ion ,1 GKL311 single Charger set,1 MS1 USB 1GB,1 SPF04 Screen protection
    Kit Option 1  Kit Option 2
    2 GEB331, Battery int Li-Ion
    1 GKL311 single Charger set
    1 MS1, USB memory stick, 1GB
    1 SPF04 Screen protection
    1 Wooden tripod
    1 GTL4M Telescopic staff, 4m, fibreglass
    2 GEB331, Battery int Li-Ion
    1 GKL311 single Charger set
    1 MS1, USB memory stick, 1GB
    1 SPF04 Screen protection
    1 Wooden tripod
    1 GPCL2, Invar Staff with Bar Code
  • HEIGHT MEASUREMENT
    Accuracy(1) using standard Invar staff | 0.3 mm
    • Accuracy(2) using standard staff | 1.0 mm
    DISTANCE MEASUREMENT
    • Accuracy(3) | 15 mm at 30 m
    MEASUREMENT RANGE
    • Minimum range | 1.8 m
    • Maximum range(4) | 110 m
    AUTOFOCUS
    • Working range | 1.8 m to infinity
    • Time to focus | Typically 4 sec
    OVERVIEW CAMERA
    • Field of view | 6° x 4.8° (7.7° diagonal)
    • Frame rate | Up to 20 frames per second
    DIGITAL COMPASS
    • Accuracy | 2.7°

    DATA STORAGE
    • 30,000 measurements
    • Minimum focusing distance | 0.6 m
    ENVIRONMENTAL SPECIFICATIONS
    • Working temperature range | -20 °C to +50 °C
    • Dust / Water (IEC 60529) | IP55
    Dust/Waterproof IP57 gas filled
    • (1) - Standard deviation, 1 km double run, ISO 17123-2. GPCL3 standard Invar staff or equivalent
    • (2) - Standard deviation, 1 km double run, ISO 17123-2. GKNL4M standard staff or equivalent.
    • (3) - Standard deviation, 500 ppm for up to 50 m, 1000 ppm for distances beyond 50 m.
    • (4) - For standard staffs exceeding 3 m length, 60 m for Invar staffs
  •
