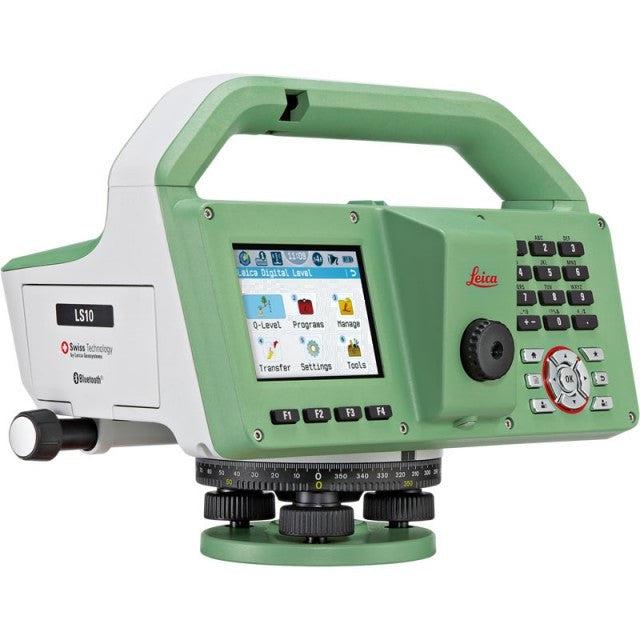

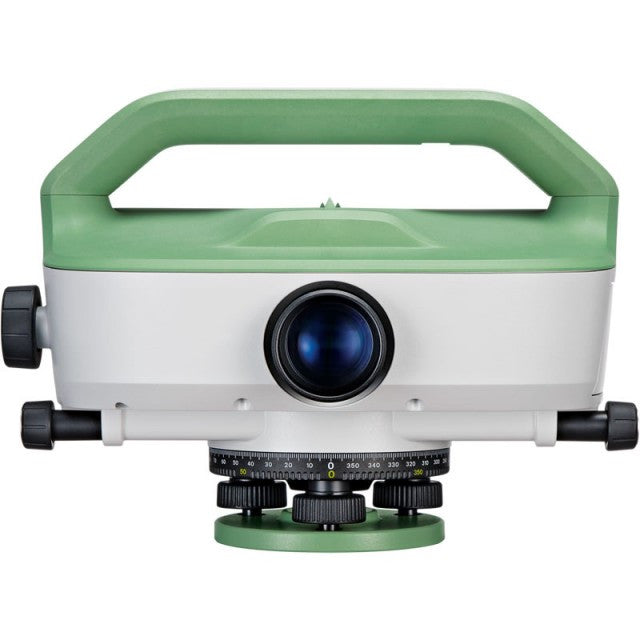

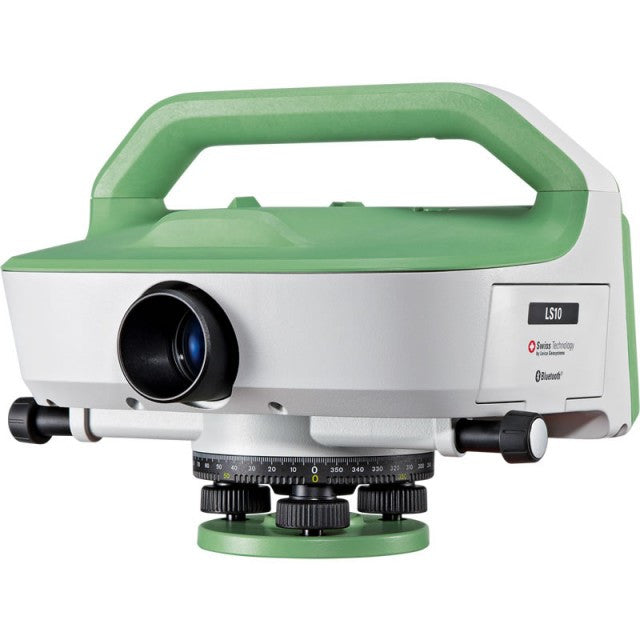

Leica LS10 Digital Level

  • Reliable accuracy with ease:
     For trusted surveyors and measuring professionals, getting a full day’s worth of highly precise levelling measurements is not only stressful but an unusually complex and redundant job.

    Leica LS15 and LS10 digital levels give a welcome chance to alleviate demanding levelling tasks. Automated functions and industry-leading 0.2mm accuracy allow users to easily demonstrate their measuring skills while effectively completing any project.

    Common levelling errors, like misreading the staff or transcription mistakes, are worries of the past. Providing the most reliable results from immediately understandable line flows with image-supported colour visuals, these levelling solutions make the professional’s daily tasks a more enjoyable experience.

    Users profit from Leica Geosystems’ experience as inventors and industry leaders of digital levels. Honing the digital level into an art form, these solutions collect results faster with the highest accuracy available.

    Standard option contains; 2 GEB331, Battery int Li-Ion ,1 GKL311 single Charger set,1 MS1 USB 1GB,1 SPF04 Screen protection
  • **All Levels come with 1 years CCP**
    Kit Option 1  Kit Option 2
    2 GEB331, Battery int Li-Ion
    1 GKL311 single Charger set
    1 MS1, USB memory stick, 1GB
    1 SPF04 Screen protection
    1 Wooden tripod
    1 GTL4M Telescopic staff, 4m, fibreglass
    2 GEB331, Battery int Li-Ion
    1 GKL311 single Charger set
    1 MS1, USB memory stick, 1GB
    1 SPF04 Screen protection
    1 Wooden tripod
    1 GPCL2, Invar Staff with Bar Code
  • HEIGHT MEASUREMENT
    Accuracy(1) using standard Invar staff | 0.3 mm
    • Accuracy(2) using standard staff | 1.0 mm
    DISTANCE MEASUREMENT
    • Accuracy(3) | 1.5 mm at 30 m
    MEASUREMENT RANGE
    • Minimum range | 1.8 m
    • Maximum range(4) | 110 m
    • Measurement time | Typically 2.5 sec
    DATA STORAGE
    • 30,000 measurements
    • Minimum focusing distance | 0.6 m
    ENVIRONMENTAL SPECIFICATIONS
    • Working temperature range | -20 °C to +50 °C
    • Dust / Water (IEC 60529) | IP55
    Dust/Waterproof IP57 gas filled
    • (1) - Standard deviation, 1 km double run, ISO 17123-2. GPCL3 standard Invar staff or equivalent
    • (2) - Standard deviation, 1 km double run, ISO 17123-2. GKNL4M standard staff or equivalent.
    • (3) - Standard deviation, 500 ppm for up to 50 m, 1000 ppm for distances beyond 50 m.
    • (4) - For standard staffs exceeding 3 m length, 60 m for Invar staffs
  •
