RSL422M Tilt & Turn Scan Target
AccessoriesReality CaptureReality Capture AccessoriesRS Smart Targets RSL422M Tilt & Turn Scan Target
Laser scanner target with special magnetic base
-
Thanks to special joints, the laser scanner brand can be easily aligned in any direction and always remains precisely on axis.
-
The stamp is printed on both sides and can therefore be used from two sides without turning and swiveling.
-
The mark can be used as a scanner or drone mark
-
Fixed points for linking several viewpoints
-
Assignment of spatial reference information to a spatial data set
-
Suitable for indoor and outdoor use
magnetic base:
-
Special magnetic base with a total of 11 magnets for all metallic surfaces and other applications
-
With recess for use in connection with the fixed points RSFP-X90
-
For use in conjunction with RSFP-X95-1, RSFP-X95-2 and RSFP-X95-3 adapters:
A) This allows the laser scanner mark to be placed on any standard tripod or tripod. See fig.

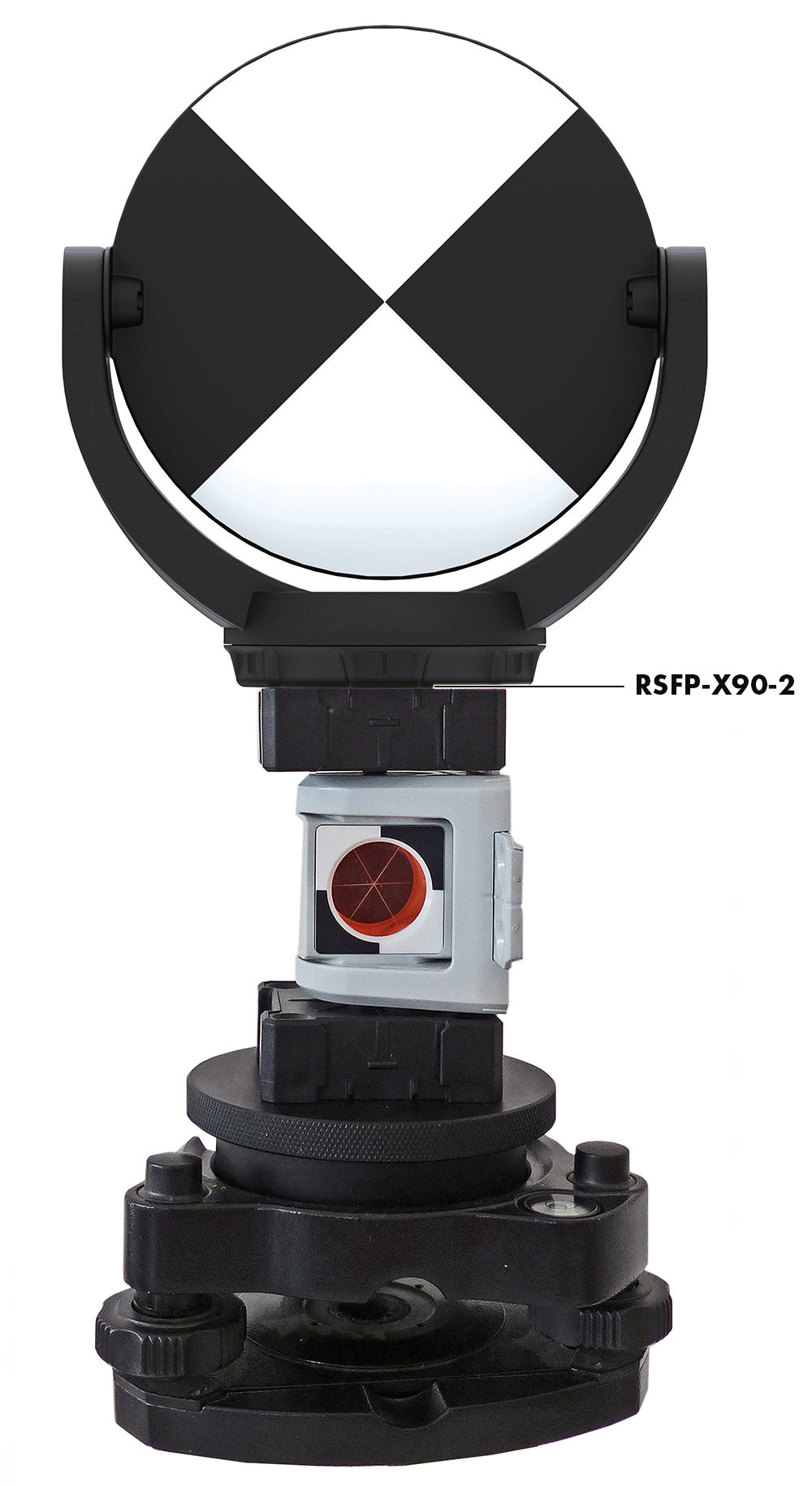

B) This allows the laser scanner mark to be placed exactly over an RS Mini prism. See fig.
-

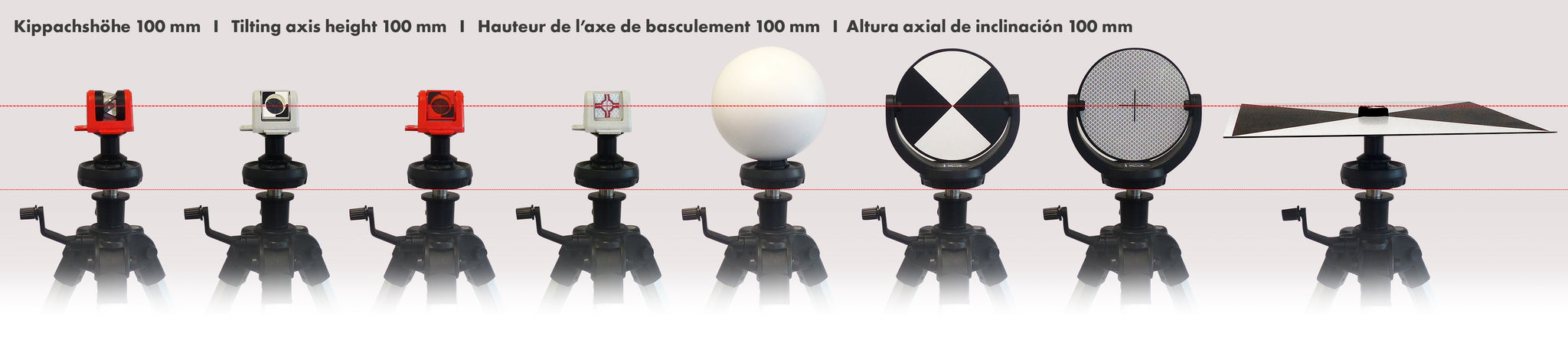

The tilting axis height of 100 mm corresponds to common prisms (RSMP395M) so that the XYZ coordinates can also be easily and precisely determined using a total station.
If necessary, we also offer a combined solution of magnetic base, adapter, and prism with a tilting axis height of 100 mm (see fig. below)
Suction cup RSSV-X90
-
Allows the laser scanner brand to be used on any smooth surface such as glass or smooth furniture fronts without drilling or gluing!
Technical data:
diameter: Ø 145mm
tilt axis height: 100 mm
weight: 500 g
Dimension file RSL422M.pdf for download.
