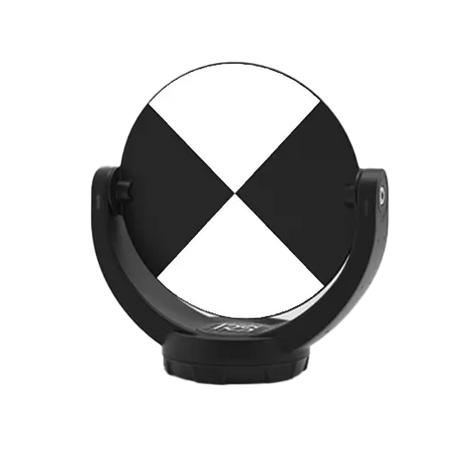

Laser scanner target with special magnetic base

Ball bearing joints allow the laser scanner target to be aligned smoothly in any direction while always remaining precisely on axis and in position.
The target can be used as a scanner or drone target
- Fixed points for linking several viewpoints
- Assignment of spatial reference information to a geodata set
- Suitable for indoor and outdoor use

  RSL420M– printed on one side with offset 0

Magnetic base:

Special magnetic base with 11 magnets for all metallic surfaces and other application

- With recess for use in conjunction with RSFP-X90 fixed points.
- Also for use in conjunction with RSFP-X90-1 wich will then allow you to place the scanner target directly onto a tripod or trivet with a 5/8 thread
- The 100 mm tilt axis height corresponds to common prisms so that the XYZ coordinates can also be determined easily and precisely using a total station.
  If necessary we also offer a combination of magnetic base, adapter an prism with a tilt axis height of 100 mm (see illustration below)
