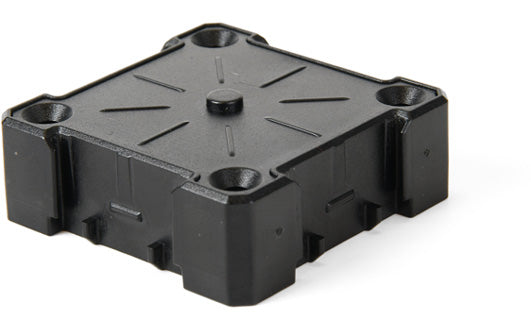

With the RSA-5/8-1 adapter, prisms, laser scanner targets and drone targets from Rothbucher Systeme can now be easily mounted on a 5/8" thread.
The plug-in system developed by Rothbucher Systeme enables the following products to be positioned exactly one above the other:

1. RSA-5/8-1 adapter
2. RSMP380 mini prisms
3. RSL-X80  laser scanner target (in combination with RSA-X80g-1 adapter) or
4. RSL580-10 + RSL580-20 drone target (in combination with RSA-X80g-1 adapter)

The vertical spacing between the prisms and the laser scanner or drone target is exactly 60mm.

If the system is mounted on a tripod, for example, the prism can be precisely calibrated by means of a total station and then the measuring point can be removed very precisely during the drone overflight.

This combination opens up completely new possibilities and a very high level of accuracy for drone measurements. In trials with high-precision cameras, accuracies of ±1 mm up to a height of 35 meters have already been achieved!
