RS193M 360 Magnetic Rotation Reflective Target

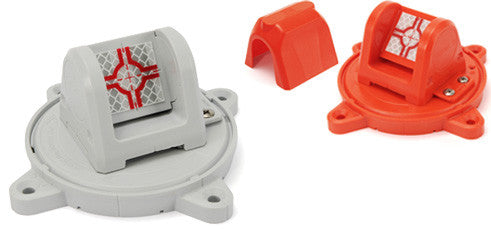

Case with a Target Reflector 30x30 mm rotatable and swiveling, magnetic
RS193 sticks quickly and easily even to difficult surfaces, e.g. glass and marble facades, historic buildings, steel girders, gas and oil pipelines, etc., or can be attached using plugs and screws. For easy installation on steel structures, a magnetic version of the base plates is also available.
The following accessories are available for this product (see right): Resumption points (item RSFP-X90) Magnetic or non-magnetic protective cap (RSPC10 and RSPC10M)
When using tachymeters and robotic total stations
the reflective target can always be aligned accurately with the measuring instrument
the reflective target can be turned in a radius of 360 making it possible to use the same survey point from all directions
when using fixed point RSFP-X90, the targets can be removed and later replaced on the same survey point
when using protective cap RSPC10 and RSPC10M, the reflective targets can be protected against dirt
Range approx. 80 m Offset: 0 Height of tilting axis: 45 mm
Optional extras to consider
PROTECTIVE CAP RSPC10
Plastic cover RSPC10 protects prisms/reflective targets against dirt.
Magnetic protective capRSPC10M is available for hard to reach points, on tunnel roofs for example.
Protective cap RSPC10M can easily be removed from the prism and replaced using metal cube RSPC50.
METAL CUBE RSPC50 with 5/8' thread
Metal cube RSPC50 is screwed onto a prism rod using the 5/8' thread. This makes it easy to remove and replace the magnetic protective caps (RSPC10M) from the plastic housing even in difficult positions.
