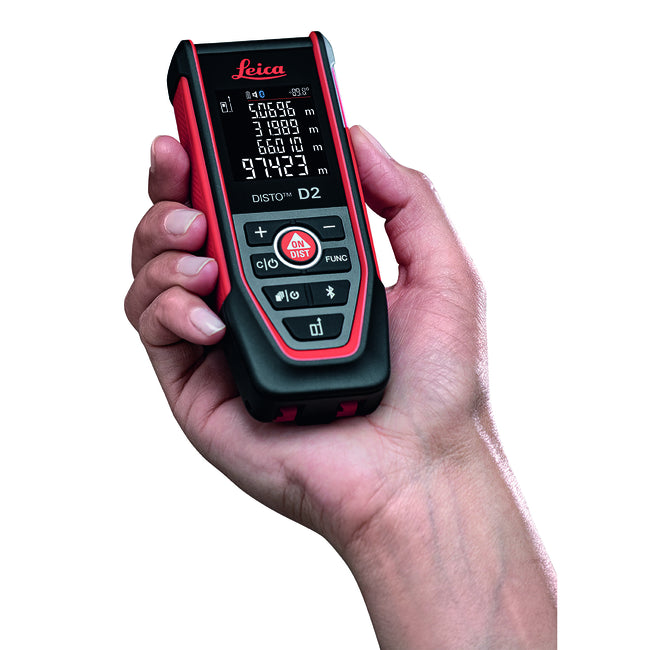

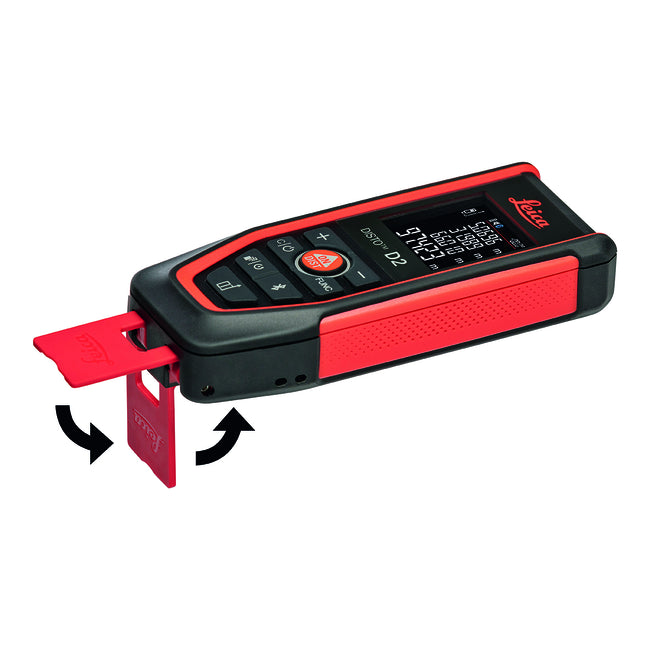

Leica DISTO D2-2

Accuracy with favourable conditions 2) 1.5 mm/0.06″
3)
Accuracy with unfavourable conditions 4) 3 mm/0.12″
5)
Range with favourable conditions 2) DISTO D2: 0.05-150 m/0.16-500 ft 3)
Range with unfavourable conditions 4) DISTO D2: 0.05-80 m/0.16-260 ft 5)
Laser class 2
Laser type DISTO D2
635 nm, < 1 mW

General
2) Favourable conditions are: white and diffuse reflecting target (white painted wall),
low background illumination and moderate temperatures.
3) Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. With favourable conditions, the tolerance may deteriorate by 0.10 mm/m for distances above 10 m,
for distances above 100 m by 0.2 mm/m.
4) Unfavourable conditions are: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
5) Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. With unfavourable conditions, the tolerance may deteriorate by 0.15 mm/m for distances above 10 m.
56 Technical Data
Tilt measuring tolerance to housing6)
Tilt measuring range6)
±0.2°
360°
Ø laser point | at distances 6/30/60 mm | 10/50/100 m
Protection class IP54 (dust- and splash water protected)
Automatic laser switch off After 90 s
Automatic power switch off Not configurable, after 180 s
Bluetooth Bluetooth v6.0
2.5 mW
2400-2483.5 MHz
Bluetooth range < 10 m
Pollution degree 2
Relative humidity Max. 85% non-condensing
Max. altitude 3000 m/9840 ft
Battery durability (2 × AAA) DISTO D2 Up to 7000 measurements
Up to 14 hours operation time
Battery durability (2 × AAA) DISTO D2G Up to 5000 measurements
Up to 10 hours operation time
Dimension (H × D × W) 127 × 50.5 × 24.5 mm |
5.00 × 1.99 × 0.96″
Weight (with batteries) 116 g/4.09 oz
6) After user calibration. Additional angle related deviation of ±0.01° per degree up to
±45° in each quadrant.
57 Technical Data
Temperature range storage
Temperature range operation
−25 to 70 °C | −13 to 158 °F
−10 to 50 °C | 14 to 122 °F

Leica Disto D2-2:View Brochure
