Cut & Fill Rod

  • The Cut & Fill Rod is perfect for Grade Setting jobs

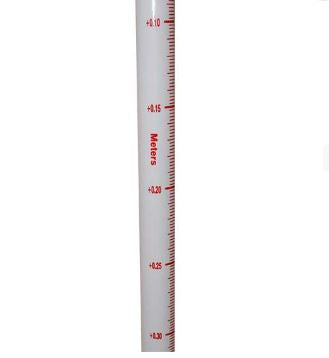

  • The red graduations is a “Cut” value from grade with a range of 0.43 m

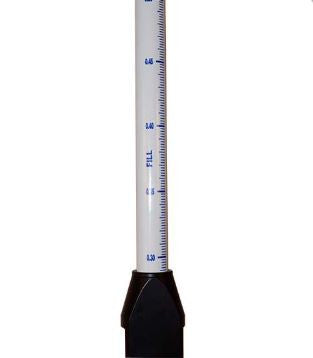

  • The blue graduations are a “Fill” value with a range of 0.562 m
  • Graduation are 2 mm increments

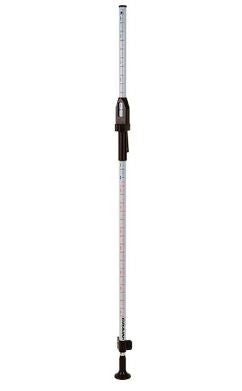

  • Rod collapsed to 1.37 m and extends to 2.4 m

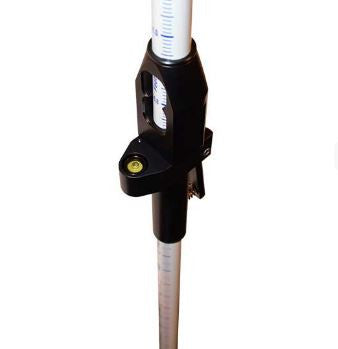

  • The Quick Release sliding bracket works will all standard Laser Receiver rod clamps
  • Levelling vial built into the sliding bracket for easy viewing
  • Telescoping bottom section reads direct height to the “zero” mark on the rod
  • Manufactured in Fiberglass and Delrin to resist concrete adhesion
  • Weighs 1.02 kg
