Leica Disto D810

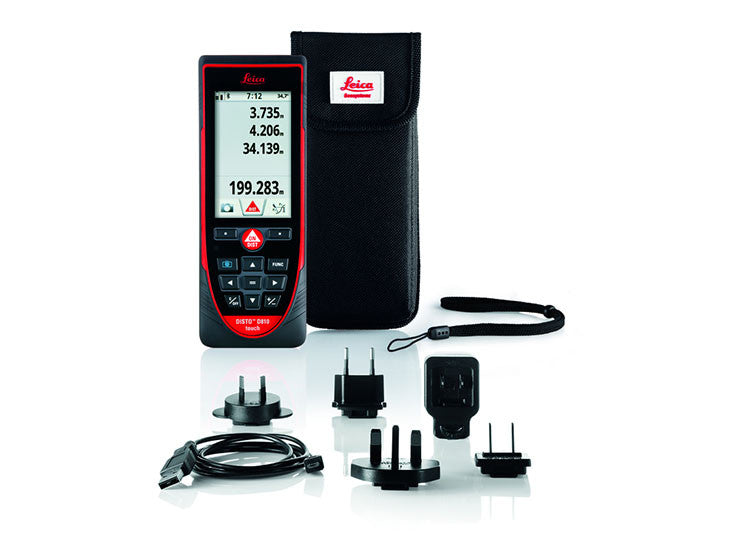

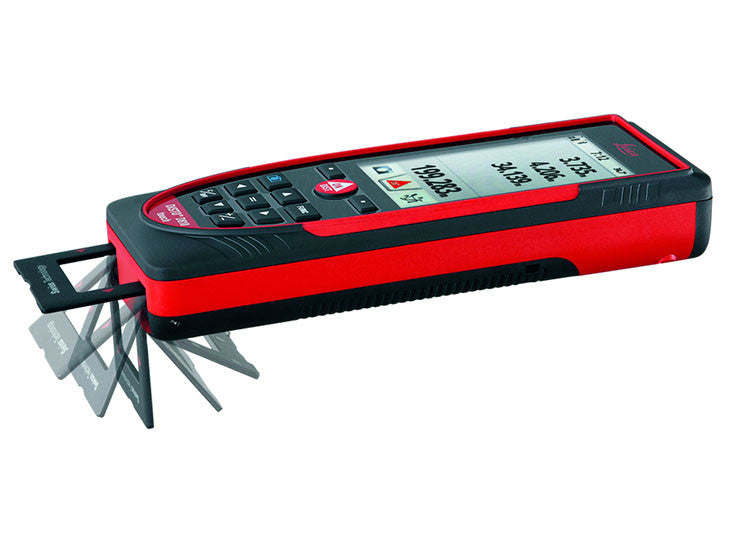

Leica DISTO™ D810 Touch

  • Leica DISTO™ D810 Touch

    Outdoor DISTO™ with pointfinder, Bluetooth and touchscreen.

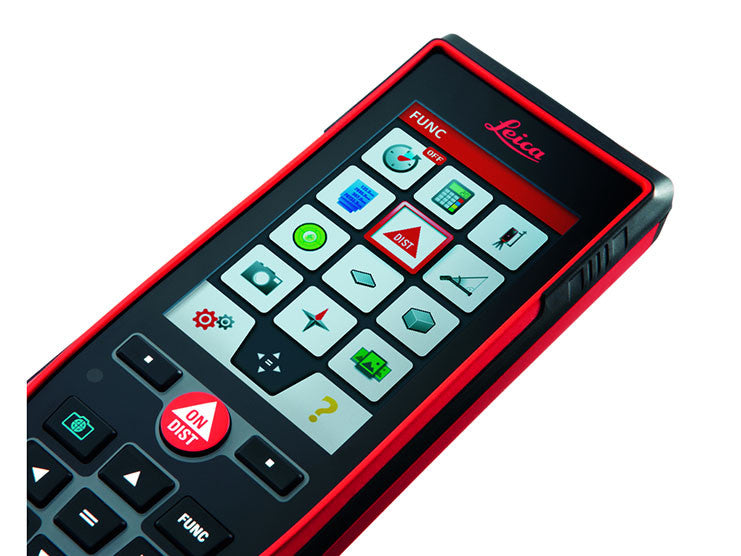

    The Leica DISTO™ D810 Touch is a 15 measurement mode DISTO™ accurate to 1mm. It features a touch screen UI,  integrated digital camera, a tilt sensor, and Bluetooth Smart.

    The D810's exclusive Measure in Picture (MIP) technology can determine the height, width, area, diameter, or circumference of an object in a picture taken by the D810.  Bracket your target using pointers on the touch screen to remotely measure the width of a second story window, the area of a billboard, or the diameter of an above-ground tank.

    With a 200m range, the D810 Touch can acquire a target that is well beyond your eye's ability to see the laser point, especially outside. The point finder -- a 4x zoom digital camera with cross hairs on the LCD display -- solves this problem.

    The farther you can shoot, the more obstacles there are to get in the way. Smart Horizontal allows you to shoot over obstacles so you can measure the level horizontal distance to your target.

    At distance, even a small wobble in the tool translates to the laser point bouncing in wide arcs on your target. For best results when measuring long distances, keep your dot steady with a tripod and an adapter . The D810 Pro Pack includes a D810, a TRI70 Tripod, Leica's patented FTA360 Fine Tune Adapter,  and a hard case to keep it all organized.

    What does this add up to? Reduced work downtime, thus translate into higher productivity, resulting in reliability and accuracy at an extremely reasonable price. Test one for yourself at LES today.
  • DIGITAL CAMERA/TOUCHSCREEN
    Yes
    ACCURACY ISO 16331-1

    ± 1 mm
    MEASURING RANGE ISO 16331-1
    •200 m
    MINIMUM/MAXIMUM MEASUREMENTS
    • Yes
    PHOTO MEASUREMENT
    • Yes
    DIAMETER MEASUREMENT
    • Yes

    HEIGHT PROFILE TRACKING
    • Yes
    TRAPEZIUM FUNCTION
    • Yes
    TIMER FUNCTION
    • Yes

    AREA/VOLUME CALCULATION
    • Yes
    PYTHAGORAS FUNCTIONS
    3 points partial height
    PAINTER FUNCTION
    Yes
    SUBTRACTION/ADDITION
    Yes
    PROTECTION CLASS
    IP54
